CRS585高压共轨喷油器试验台是根据柴油机ECU工况，同时提供卡特彼勒、博世、电装、德尔福、西门子等共轨系统控制信号（CP1/ CP2/ CP3/ HP3/ HP4/ DELPHI），驱动高压共轨油泵和高压共轨喷油器进行工作，内存3500多套数据，驱动信号参数用户可以根据自己的实际情况进行设置，并可分组进行保存，便于维修人员对高压共轨系统的工作状态进行判断和维修。系统支持实时在线升级服务，保证了设备数据更新，同时提供免费的远程控制窗口，精准快速解决你的后顾之忧，为你在维修路上保驾护航。

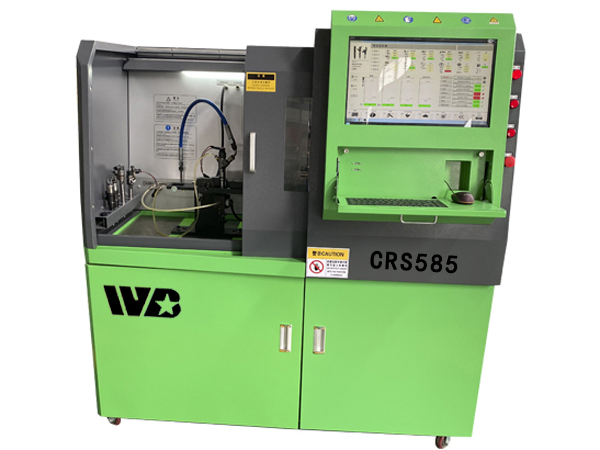

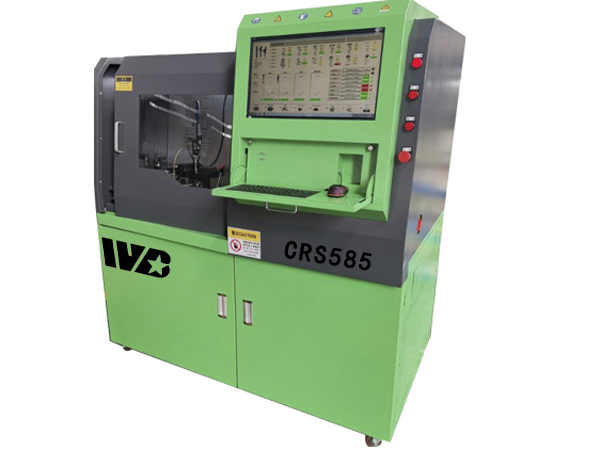

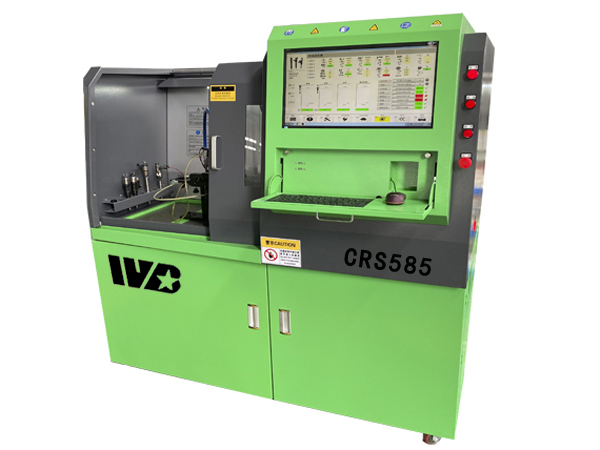

CRS585 high pressure common rail injector test bench

Explanation:

The CRS585 high-pressure common rail injector test bench is based on the diesel ECU operating conditions, and also provides common rail system control signals (CP1 / CP2 / CP3 / HP3 / HP4 / DELPHI) of Caterpillar, Bosch, Denso, Delphi, Siemens, It drives high-pressure common rail oil pump and high-pressure common rail injector to work. It has more than 3,500 sets of data. The driving signal parameters can be set by users according to their actual conditions, and can be saved in groups, which is convenient for maintenance personnel to work on the high-pressure common rail system. Status judgment and maintenance. The system supports real-time online upgrade service, which guarantees the equipment data update. At the same time, it provides a free remote control window to accurately and quickly resolve your worries and escort you on the road of maintenance.

标配功能

Standard functions

1、测试高压共轨喷油器

1、Testing high-pressure common rail injectors

2、测试压电晶体式喷油器

2、Testing Piezo Crystal Injectors

3、测试喷油器相应时间

3、Accurately test the corresponding time of the injector

4、博世IQA码自生成、能自定义修改喷油器各工况的喷油量

4、The Bosch IQA code is self-generated and can customize the fuel injection amount of each working condition of the injector

5、自动生成喷油量补偿修正码

5、Automatically generate fuel injection compensation correction code

6、检测喷油器电磁阀电阻

6、Detecting the injector solenoid valve resistance

7、检测喷油器电磁阀电感

7、Detecting Inductor Solenoid Valve Inductance

8、自动生成博世压电喷油器ISA码

8、Automatically generate Bosch piezoelectric injector ISA code

9、喷油器开启脉宽测试

9、Injector opening pulse width test

10、喷油器开启压力测试

10、Injector opening pressure test

11、检测喷油器电磁阀电流

11、Detecting injector solenoid current

12、检测DRV阀控制电流

12、Detection of DRV valve control current

13、实时监控喷射驱动及系统电压

13、Real-time monitoring of jet drive and system voltage

14、工控机电脑控制

14、Industrial computer control

15、双驱动控制系统

15、Dual drive control system

16、强风冷散热系统

16、High-efficiency strong air cooling system

17、7*24小时连续工作油温不超42℃

17、7 * 24 hours continuous working oil temperature does not exceed 42 ℃

18、轨压可达260Mpa

18、Rail pressure up to 260Mpa

19、智能化在线升级

19、Intelligent online upgrade

选配功能

Optional function

测试中压共轨喷油器HEUI

Testing the medium pressure common rail injector HEUI

自动生成XPI（福康东康）修正码

Automatically generate XPI (Fukang Dongkang) correction code

油温过高自动报警

Automatic alarm when oil temperature is too high

油位不足自动报警

Automatic alarm for insufficient oil level

自生成DENSO喷油器QR码

Self-generating DENSO injector QR code

自生成BOSCH喷油器IMA编码

Self-generating BOSCH injector IMA code

自生成DELPHI喷油器C3i编码

Self-generating DELPHI injector C3i coding

自生成Siemens喷油器修正码

Self-generating Siemens injector correction code

技术参数

供 电 电 压： 220VAC/380VAC

相   数：   单相/三相

频   率：   50Hz/60Hz

电   流：     30A(Max)

电 机 功 率:   5.5Kw

油 温 控 制：  加热/强制冷风

油 温 设 定： 40摄氏度

使用环境温度： 小于35摄氏度

共轨压力： 180-260Ma

共 轨 泵：    BOSCH CP3.3

控制回路电压： DC12V/DC24V

ECU内部升压： 0-200VDC(Max)

油 箱 容 积： 30升

噪 音 水 平： ≤85dB

毛   重：    350kg

外 型 尺 寸： 140*83*160cm

包 装 尺 寸： 150*95*170cm

Technical Parameters

Power supply Voltage: 220VAC / 380VAC

Number of phases: single phase / three phase

Frequency: 50Hz / 60Hz

Current: 30A (Max)

Electric machine power: 5.5Kw

Oil temperature control: heating / cooling air

Oil temperature setting: 40 degrees Celsius

Working environment temperature: less than 35 degrees Celsius

Maximum common rail pressure: 180-260Ma

Common rail pump: BOSCH CP3.3

Control loop voltage: DC12V / DC24V

ECU internal boost: 0-200VDC (Max)

Fuel tank capacity: 30 liters

Noise level: ≤85dB

Gross weight: 350kg

Overall dimensions: 140 * 83 * 160cm

Package Size: 150 * 95 * 170cm
