高压共轨试验台组 当前位置:首页 > 高压共轨试验台组

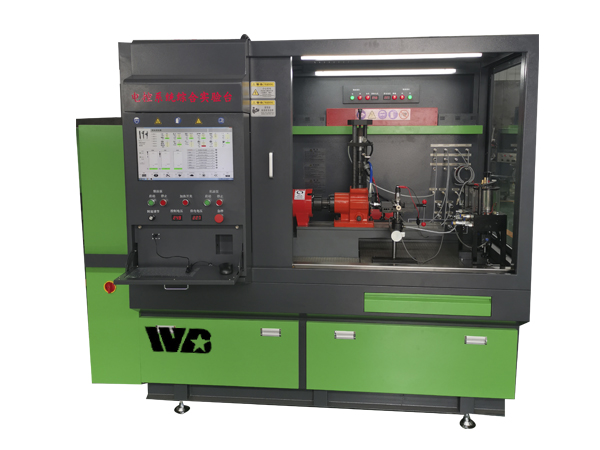

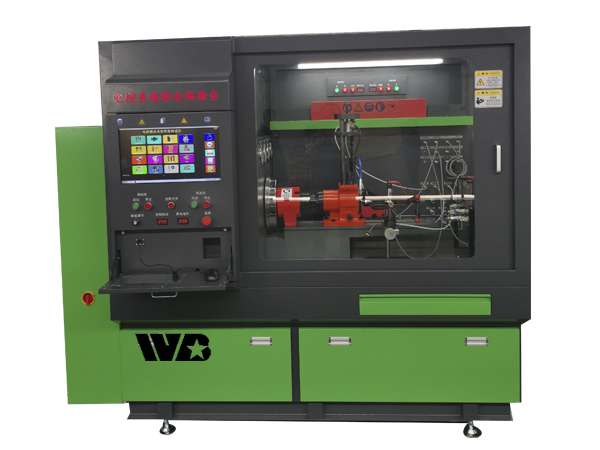

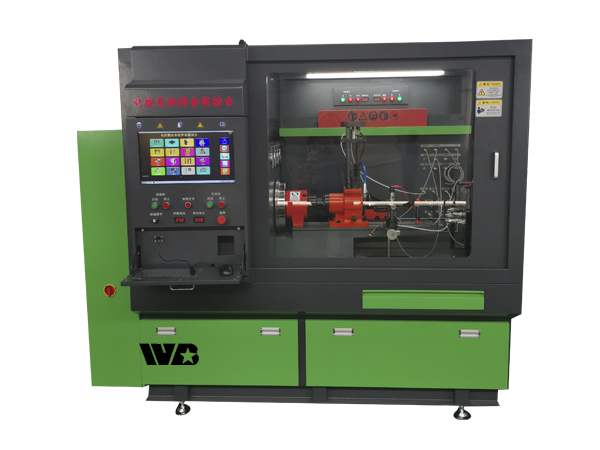

HCR875高压共轨综合试验台




标配功能

1、测试共轨喷油器

2、测试共轨泵

3、测试EUP\EUI

4、测试HEUI喷油器

5、测试HEUI促动泵

6、喷油器响应时间测试

7、IQA码自定义修改喷油器各工况的喷油量

8、测试双电磁阀E3泵喷嘴

9、自动生成喷油量补偿修正码

10、检测喷油器电磁阀电阻

11、检测喷油器电磁阀电感

12、自动生成博世压电喷油器ISA码

13、喷油器开启脉宽测试

14、喷油器开启压力测试

15、检测喷油器电磁阀电流

16、检测DRV阀控制电流

17、实时监控喷射驱动及系统电压

18、油温过高自动报警

19、油位不足自动报警

20、工控机电脑控制

21、双驱动控制系统

22、强风冷散热系统

23、24小时连续工作油温不超42℃

24、轨压可达260Mpa

25、智能化在线升级

选装功能

1、VP44电控泵测试

2、双路DRV配置

3、六通道同时触发六只喷油器

4、同时生成六只喷油器修正码

5、自动生成博世6、7、8、9、10位数IMA编码

6、自动生成博世压电IMA、ISA编码

7、自动生成电装QR油量修正码

8、自动生成德尔福C2I、 C3I油量修正码

9、自动生成西门子VDO(IIC)编码

10、自动生成XPI(福康东康)修正码

Standard functions

1.Test common rail injector

2.Test common rail pump

3.Test EUP \ EUI

4.Test the HEUI injector(Optional functions)

5.Test HEUI actuated pump(Optional functions)

6, Accurate injector BIP test

7, IQA code custom modification of the fuel injection amount of the fuel injector

8.Test the nozzle of the double solenoid valve E3 pump

9.Automatically generate fuel injection compensation code

10.Detection of the resistance of the injector solenoid valve

11.Detection of fuel injector solenoid valve inductance

12.Automatically generate ISA code for Bosch piezoelectric injectors

13.Injector opening pulse width test

14.Injector opening pressure test

15.Detect the injector solenoid valve current

16.Detection of DRV valve control current

17.Real-time monitoring of jet drive and system voltage

18.Automatic alarm when the oil temperature is too high

19.Automatic alarm for insufficient oil level

20. Industrial computer control

21.Dual drive control system

22.High efficiency and strong air cooling system

23, 24 hours continuous working oil temperature does not exceed 42 ℃

24.Rail pressure can reach 260Mpa

25.Intelligent online upgrade

Optional functions

1.VP44 electric control pump test

2.Dual DRV configuration

3.Six channels trigger six injectors at the same time

4. Simultaneously generate six fuel injector correction codes

5.Automatically generate Bosch 6, 7, 8, 9, and 10-digit IMA codes

6.Automatically generate Bosch piezoelectric IMA and ISA codes

7.Automatically generate Denso QR oil quantity correction code

8, automatic generation of Delphi C2I, C3I fuel quantity correction code

9.Automatically generate Siemens VDO (IIC) code

10、Automatically generate XPI (Fukang Dongkang) correction code

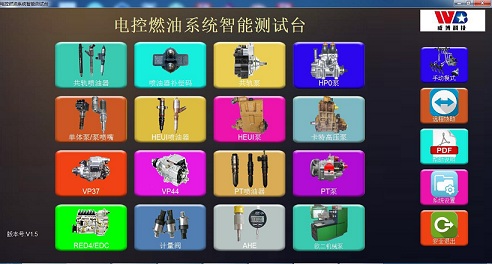

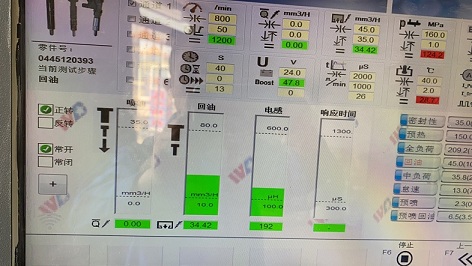

测试界面



标配价格是88000-90000

HCR875高压共轨综合试验台 2020-7-23 本文被阅读 1969 次
